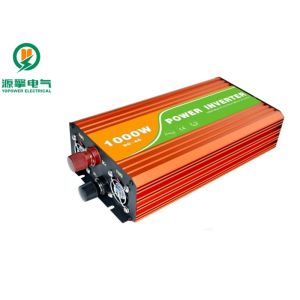

Hybrid Off Grid 12V 24V 48V Pure Sine Wave Power Inverter 1000W 220vAC
A power inverter is a device which converts DC power (battery power) to AC power. Our inverter is pure sine waveform out which is more superior and efficiency than modify inverter. If you have a battery bank system, the inverter can use battery power for most household appliances, such as TV, fridge, radio, lights or to charge a laptop / mobile phone etc. The inverter is suitable to use in any area where is unable to access to mains electricity; such as in a motorhome, caravan, boat, farm or any other remote location. Inverters are also perfect for off-grid and back up systems for accidental power cuts.
This 1000W pure sine wave inverter provides 1000W of continuous power output and up to 2000W of power at peak times (peak time reserve capacity is useful if more energy is required to start an appliance than for its continuous running).
This 1000W hybrid inverter comes with important protection and safety features, such as over-discharge, overload, overheating and short-circuit automatic shutdown.
This 1000W inverter has USB port which can be used for charging mobile phones, tablets, laptops, MP3 players and other USB-compatible devices.
1. Features
-
DC input 12V 24V 48V
-
AC ouput 100-240VAC
-
Low interference technology
-
Soft start function
-
Same size, light weight, faint noise ,free maintenance
-
High converting efficiency, more than 90%
-
Under voltage shutdown protection
-
Over voltage shutdown protection
-
Latest soft-start technique
-
Overload protection
-
Overheat protection
-
Alloy aluminium case
2. Parameters
| Model |
YQHI-1000W |
| Rated power |
1000W |
| Rated system voltage |
12V/24V/48V (optional) |
| Peak power |
2000W |
| Output voltage |
100/110/120/220/230/240VAC, optional |
| Phase |
Single-phase |
| Inverter efficiency |
>90% |
| Stand by consumption |
<10W |
| Wave form |
Pure Sine Wave |
| LED display |
LED display power&fail status |
| USB socket |
Yes, 5V |
| Fuse |
35A (12V), 20A (24V), 15A (48V)
|
| Low voltage alarm |
10.5V±0.3V (12V), 21V±0.5V (24V), 42V±0.5V (48V) |
| Low voltage disconnect |
10V±0.5V (12V), 20V±0.5V (24V), 40V±0.5V (48V) |
| Over voltage disconnect |
15.5V±0.5V (12V), 30.5V±(24V), 60V±0.5V (48V) |
| Over load disconnect |
1200W (10S) |
| Over temperature disconnect |
>75 ℃ |
| Ambient temperature |
-10℃~50℃ |
| Dimension (mm) |
305*146*66 |
| N.W (KG) |
2.8 |
| Packing size (mm) |
360*185*115 |
| G.W (KG) |
3.5 |
| Warranty |
2 years |
3. Application
All power system with battery
4. Package information
1pcs 1000W pure sine wave inverter
1pcs user manual
1pcs connector
